1. Introduction


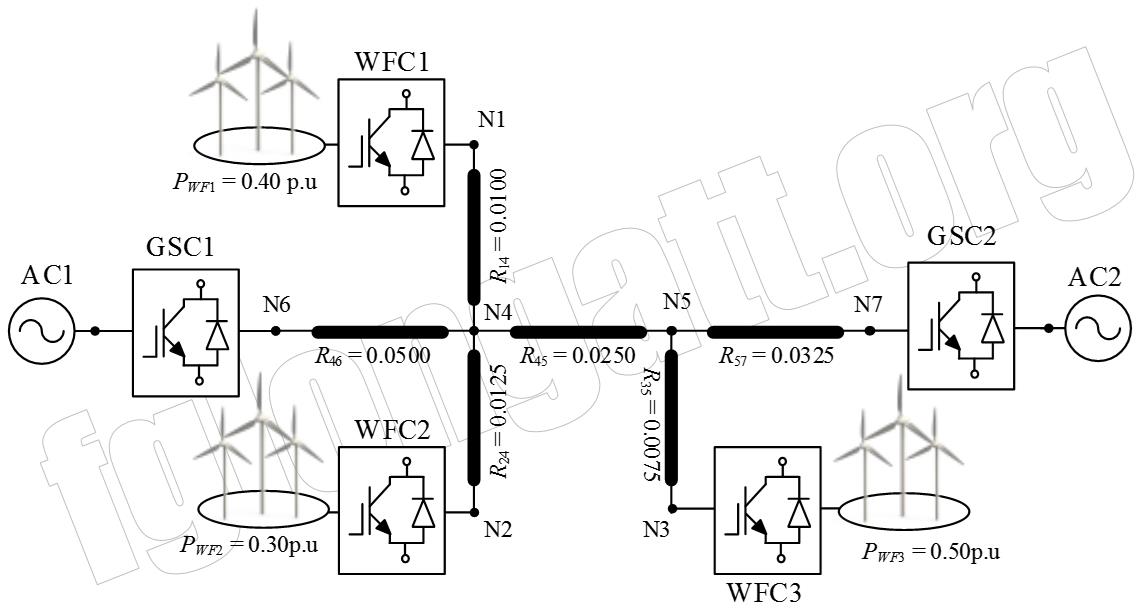

7-Node+3WF+2AC Test System
is a multi-terminal HVDC system.

it is a DC meshed network, composed by 7-nodes and 6-cables.

There is three offshore wind farm connected to 2 different AC onshore networks (AC1 and AC2).

DC Node:
N1, N2, N3, N4, N5, N6 and N7
VSC-HVDC converter stations:
2 Grid side converters (GSC1 and GSC2) and three wind farm converter (WFC1, WFC2 and WFC3).

Disclaimer and Content Policy

Test Case: MatACDC.

Test Case: DIgSILENT PowerFactory.

This archive is operated voluntarily as a public service. No guarantees of any kind regarding the correctness, currency, functionality, usability or any other attribute of the archived material can be made. Use at your own risk.

Material in the archive is intended for purposes of research and education, not for commercial gain. Material that is known to be copyrighted or proprietary will not be accepted without specific permission from the owner. Copyrighted or proprietary material that inadvertently appears in the archive will be removed as soon as its status is called to the attention of the archive maintainer.

System Data
